Jakcom iR Smart
Controller Instructions
Packing£º
Packing bag x 1¡¢Silicone
case x 1¡¢Smart Remote Control x 1
System
Requirements£º
IOS 7 system or higher
version of all iPhone, iPad and Touch.
Specifications£º
Model£ºJakcom
IR01
Transmission mode£ºInfrared
Transmission distance£ºStraight-line
distance 12M
Operating temperature
range£º-10~+60¡ã
Description£º

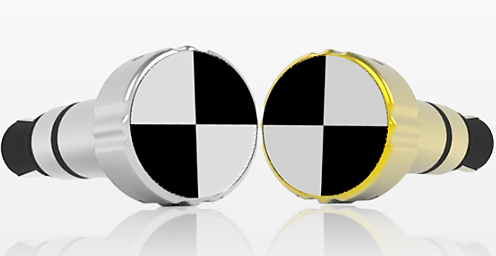

Jakcom IR01 is an
Universal Remote Control, which is designed for Apple device ; It can simulate
all traditional
Remote control ,so that
can replace all infrared remote control you have; Built-in dual-core
infrared
Emission modules make
control range far better than similar products; Equipped
with the new super capacitance, no need to
charge by external

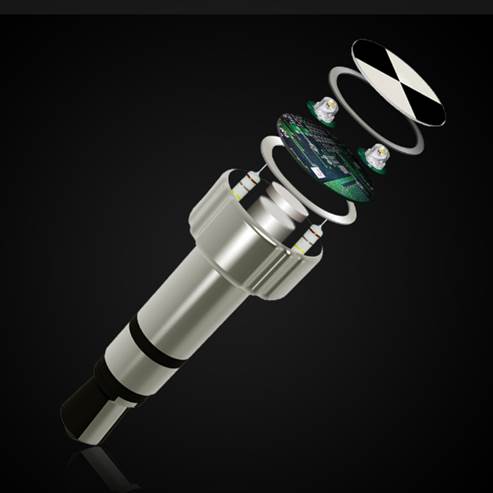

battery. Through unique design and advanced processing technology, all integrated
circuit units are in the audio pin,
So that this iR01 have
super-mini size; Following the industrial design concept of
Apple products, make it looks like an apple accessory; The
unique and integrative design of the rotary switch makes it
convenient to
use. You can close it by
rotation when not in use and no need plug in or pull out.
The
first installation and connection
1. Click ¡±App Store¡±
2. Search¡°ZazaRemote¡±or click
the link below

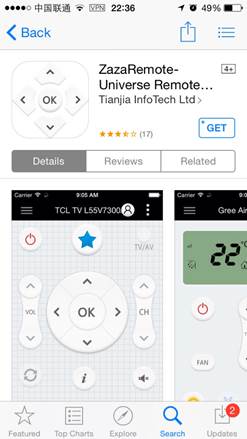

3. Click ¡±get¡± to
download¡£

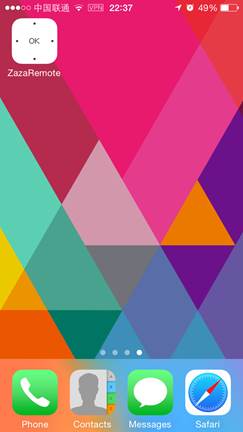

4. click the app icon of¡±ZazaRemote¡±
5.Application home page

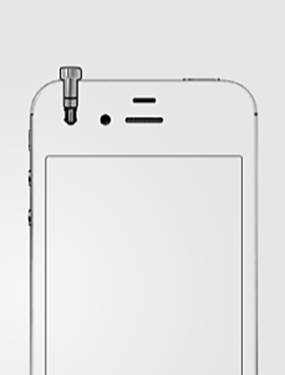

6.Insert the remote to
the headphone jack
7.Rotate the remote
control until you see the prompt.
(PS£ºPlease
slowly to rotate the remote control to be ON ,and timely stop rotation when you
see the prompt ,this is the easy erorrs that overdone of rotation. and must let
our romote control aiming the device which you want to control and as near as
possible in first time to pair them ; Please aim remote control at the receiver
of electrical appliance.)

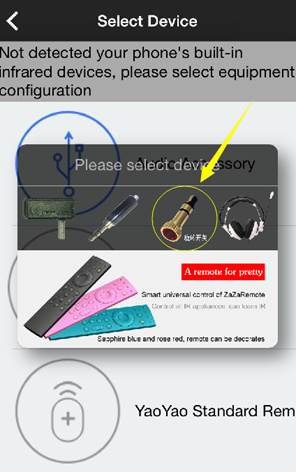

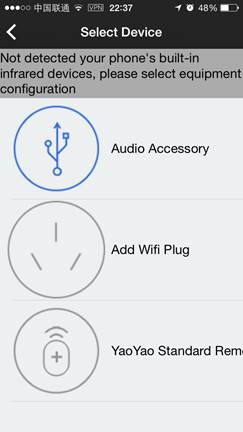

8.Click the color gold remote
control in the prompt interface

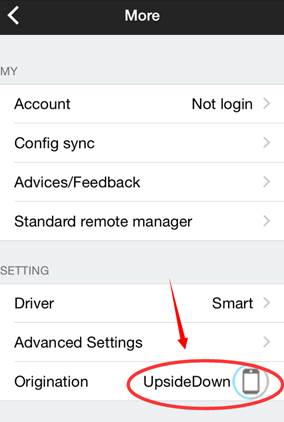

9.According to the
direction of ear jack of your device to Select the Origination
10.In the ¡°Senior Config¡±,
you can open ¡°Vibration¡±to assist the prompt.

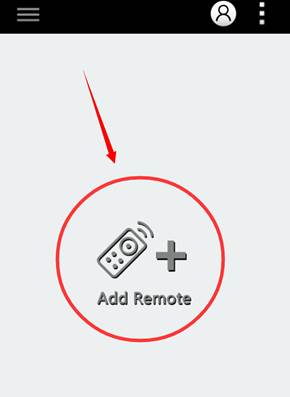

11.Get back to the main
screen to click¡±Add Remote¡±
12.Select appliance type
what you want to add.

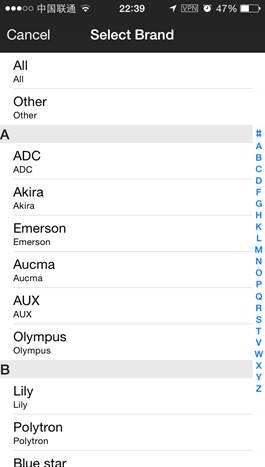

13.Selete the brand and
models
£¨If
there is no your brand and model£¬you can try to upgrade
the APP£¬or replace with other similar software
to test. The device can
be used for all remote control APP. £©

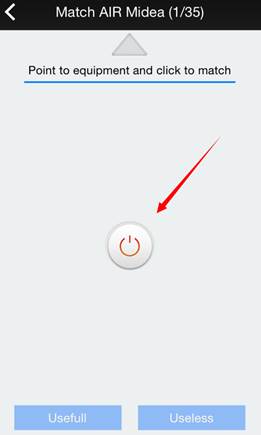

14. According to prompt
to click the button when the remote control aiming the appliance waiting for
matching,.

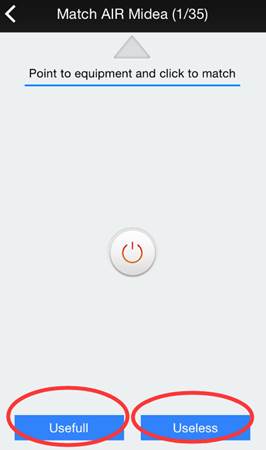

15.After several times click,
select the test results.
(If all models are not
matched with your device, you can try to upgrae this APP,
or replace with other
similar software to test. The device can be used for all remote control APP. £©
16. Pair bonding can be
finished with the same method to match other basic functions, and after enter
into the corresponding
control panel.

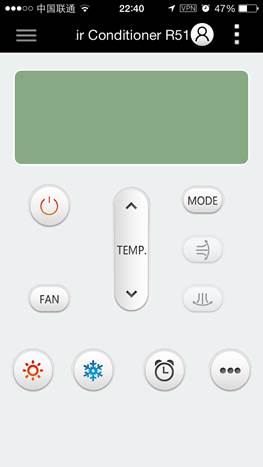

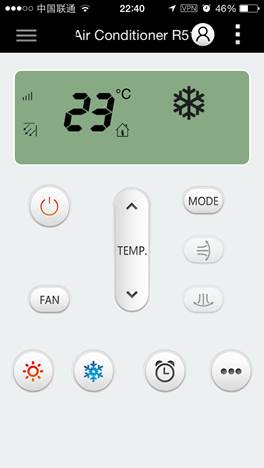

17. Now you can control
the appliances by the buttons on the control panel.

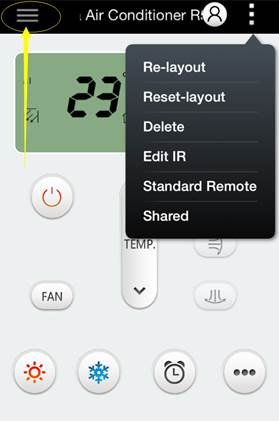

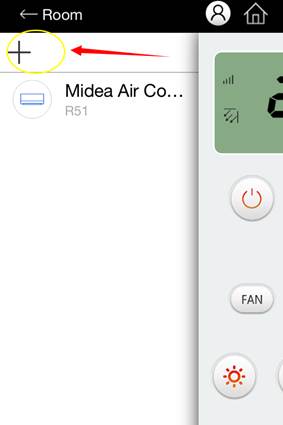

18. You can add more
devices by the menu in top-left corner.
(In the future, if the
panel
is no response, please
click ¡°delete¡±in the top-right corner and then re-match again.)
Frequently
Asked Questions
1. Could
this Remote controller works with Android ?
Yes,but just
for some model ,example£ºSamsung , HTC , Huawei , Motorola , Oneplus.
Android
App Download Link
: https://play.google.com/store/apps/details?id=com.tiqiaa.remote
2. Does
this Remote controller needs to connect internet?
No
need.
3. Feel
the range of control is short.
Please
increase the volume of phone headset from system settings.
4.
No reaction
Please slowly to rotate the remote control to be ON ,and timely stop rotation when you see the
prompt ,this is the easy erorrs that
overdone of rotation. and must let
our romote control aiming the device which you
want to control and as near as possible in first time to pair them.
Please aim remote control at the
receiver of electrical appliance.
