Instruction of ID Module



Match method (recommended): Ring¡¯s ID module regard as an empty ID Card.

First, Make sure your target card belonging to ID cards, and then Let the target card issuer to put rings side letters "ID" area on the signal area of card reader, and accordance with the new card issuing processes to operate;

Some door locks can match the new card by itself, so user can check the part of how to match a new card in the instructions of door locks.



If the target card issuer can not match this ID module for you.

Please refer to the following methods to copy the target card.



Copy Method 1£º

First, Make sure your target card belonging to ID cards, then buy this ID module dedicated reader RDW from below link or dealer of this Ring.

RDW --- ID Module Reader£¨Click to View£©



Copy Method 2£º

Bring target card and rings to your local locksmith who can duplicate ID Card.( Usually locksmith will live ads on local service website )



Copy Method 3£º

Contact the dealer of this Ring to ask if they has Replication Service or not.





FAQ

How to distinguish whether the target card is ID card or not?

1.    Ask the issuer of your card.¡£

2.    Use NFC of Android phone to distinguish : Unlock phone screen and Turn on the Android phone's NFC feature, and then Use the target card to touch the back of the phone (NFC signal area); if the phone is no response, it means that the card is an ID card, because most cards divided into low-frequency (125khz) ID card and high-frequency (13.56MHZ) IC card , Phone¡¯s NFC function can respond to all 13.56MHZ high frequency IC card.



ID reader can not read or write to this Ring ?

1.    Make sure your target card belonging to ID card

2.    Make sure rings side letters "ID" area on the middle of card reader signal area.



The Duplicator of locksmith can read out target card , but can not write into this Ring?

If the duplicator of locksmith is handheld style , please let him to try other type of duplicator , like USB desktop reader , because some handheld duplicator can not read small antenna well.

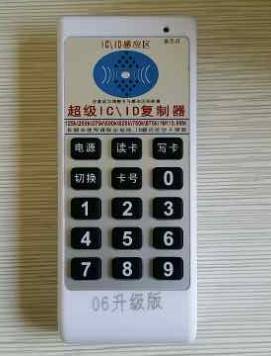

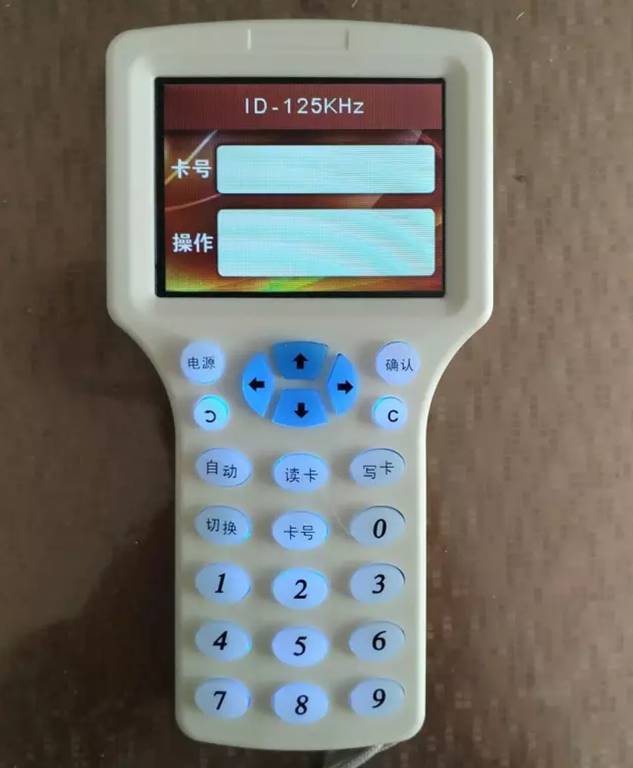

If use this below duplicator , you can follow this instruction to set it.

Switch to ID-125KHZ

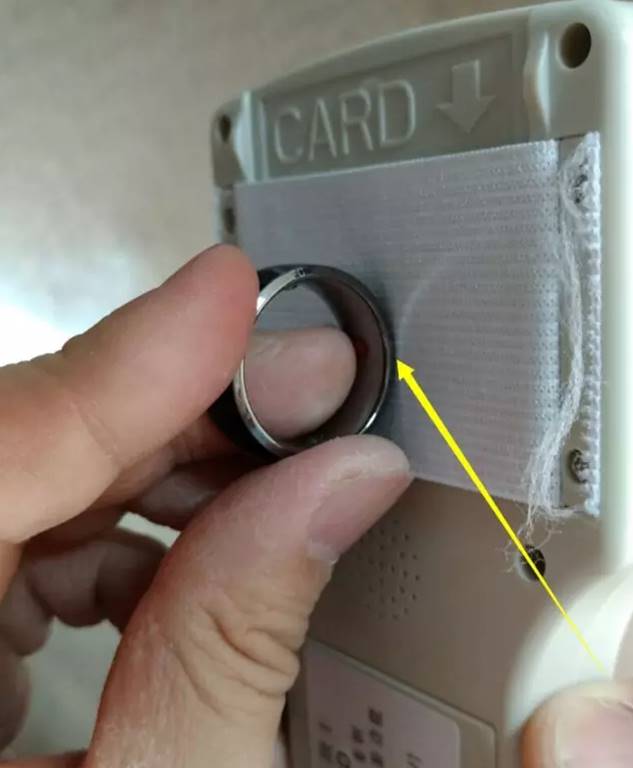

Let ring¡¯s ID side to touch the back of reader.

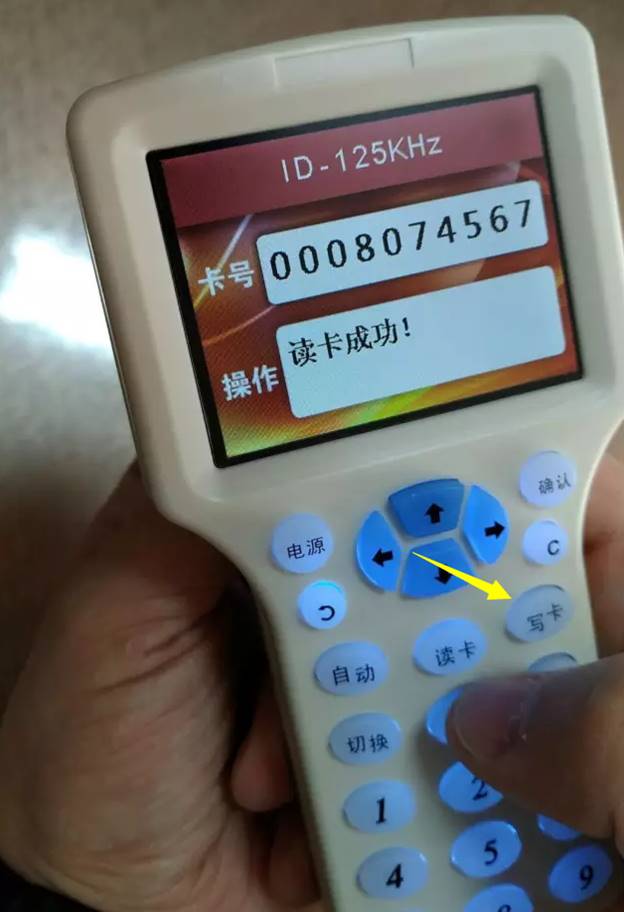

Keep holding Ring¡¯s position and press the write or read button





Note:

All handheld duplicator like above one will lower the distance of reading and writing when the battery of duplicator is not enough.

So if the duplicator is failure of reading or writing, and the duplicator¡¯s screen or light or sound is not stable, please change another one full battery to try it again.

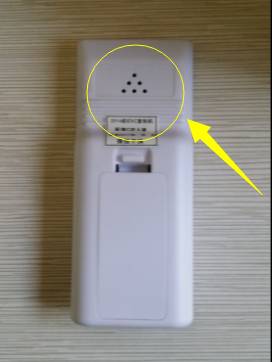

If use this below duplicator , you should use the back area to write Ring¡¯s ID module..



https://mmbiz.qlogo.cn/mmbiz/kP56qwB4mnriatMBx3Pvs2WevJia81PV2jk2IP0BtgIYzmdlia49Cksic68gWSmOdkTlu0YqnO41lqd0ax0uibFu2Aw/0?wx_fmt=png



https://mmbiz.qlogo.cn/mmbiz/kP56qwB4mnriatMBx3Pvs2WevJia81PV2jLBCPzL2RDenp0pPwaNupqyu4QQVJlrcfRvwqlnia4T2MRXPiaf9ZIUqg/0?wx_fmt=png



Note:

All handheld duplicator like above one will lower the distance of reading and writing when the battery of duplicator is not enough.

So if the duplicator is failure of reading or writing, and the duplicator¡¯s screen or light or sound is not stable, please change another one full battery to try it again.
