JAKCOM F9 Anion Air Purifier

Instruction for Use

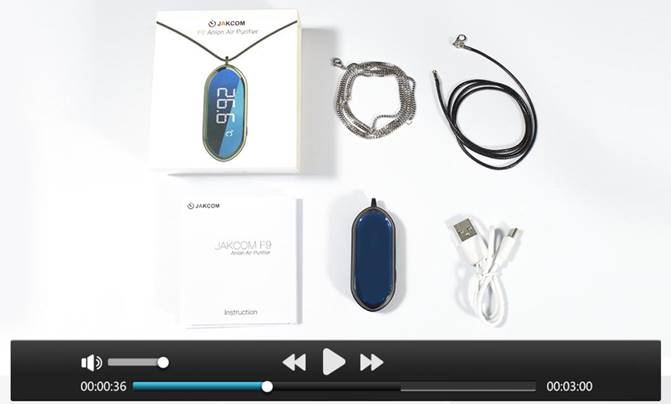

Click the above image to watch the instructions video







Function Introduction

JAKCOM F9 is a portable anion air purifier, which can purify ambient air and detect ambient temperature and humidity.

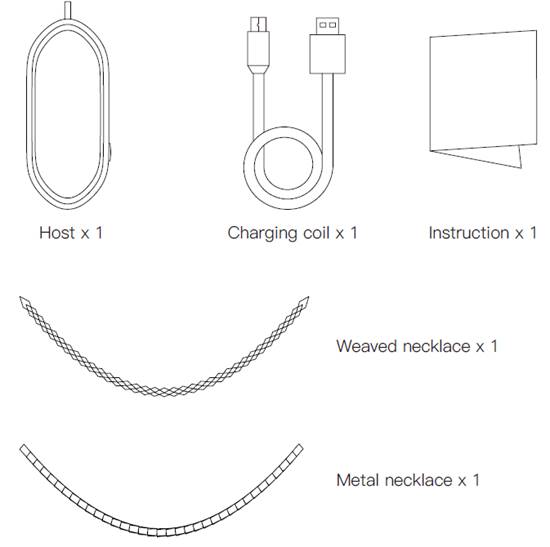

Packing list

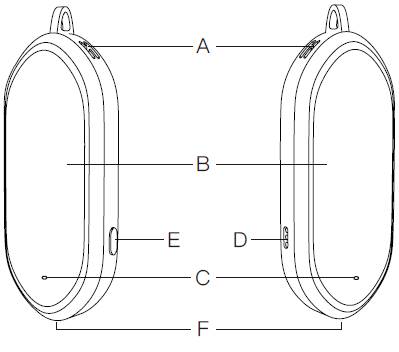

Structure description

A. Anion emitting head

B. Display screen

C. Indicator light

D. Temperature and humidity sensors

E. Buttons

F Charging port





Charging

Plug the charging coil in the package into the charging port of the host, then connect it to the USB power of 5V2A,

Charging starts when the indicator light is always on and red; charging completes when the indicator light is always on and blue. It usually takes about 2 h to fully charge the battery.

First use

Please fully charge the battery before first use .





Power on

Long press the right button, release the button when the display screen shows "88.8", the start-up is completed when the indicator light flashes blue .



Anion air purification

The anion air purification function will automatically start after power-on.

The anion emitting heads on both sides of the top may irregularly squeak at low decibel at work.





View ambient temperature and humidity

Short press the right button after power-on

When "°C" is displayed on right side of the display screen, the figure on the screen is the ambient temperature in centigrade.



Short press the right button again

When "°F" is displayed on right side of the display screen, the figure on the screen is the ambient temperature in Fahrenheit.



Short press the right button again

When"水滴" is displayed on right side of the display screen, the figure on the screen is the ambient humidity.





Low battery

The battery power is low when the indicator light flashes red, please charge as soon as possible.





Power off

Long press the right button, release the button when the display screen shows "OFF", the shut-down completes when the indicator light flashes red and blue alternately three times.





Specification parameters

Stand-by time: 36 hours

Anion concentration: 10 million cm3

Working voltage: 5V

Operating power: 24mW

Battery capacity: 240mAh

Display screen: LED

Charging port: Type-C

Charging time: 2 hours

Host material: PC+ABS

Product weight: 26g

Product size: 66*28*18mm





Notes

1. Do not touch the Anion Emitting Head on both sides to avoid damaging it or causing tingling;

2. This product is not waterproof. If you are caught in the rain or soaked in water, please turn it off as soon as possible and blow it dry.
