JAKCOM MC2 Wireless Mouse Pad Charger

Operation Instruction



Product introduction:

JAKCOM MC2 is a full-size desktop mouse pad which can wirelessly charge the smart phones;

The built-in JCP smart chip provides comprehensive charging protection, and with the function features such as Automatic inductive charging, Dual-coil variable-frequency quick charging etc.

Simple appearance design, utilize environment-friendly fabrics with waterproof at the front, and anti-slip at the bottom, which can meet the requirements of various desktop scenarios.

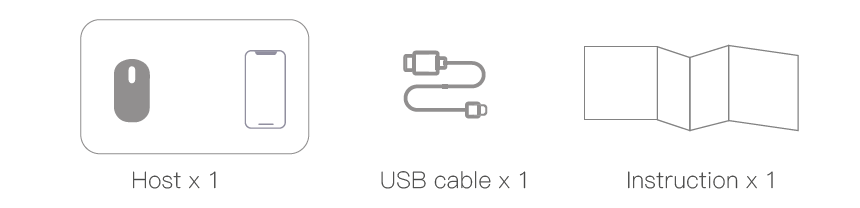

Package description:

Host x1

USB cable x1

Instruction x1

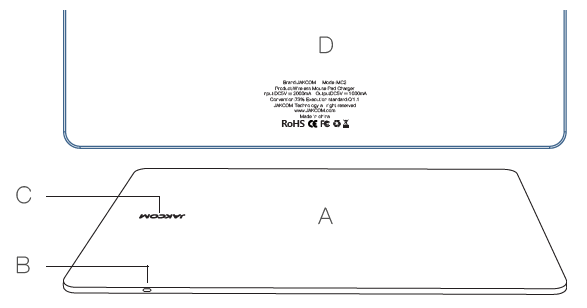

Structural description:

A Front side

B Power interface

C Charging induction area

D Back side

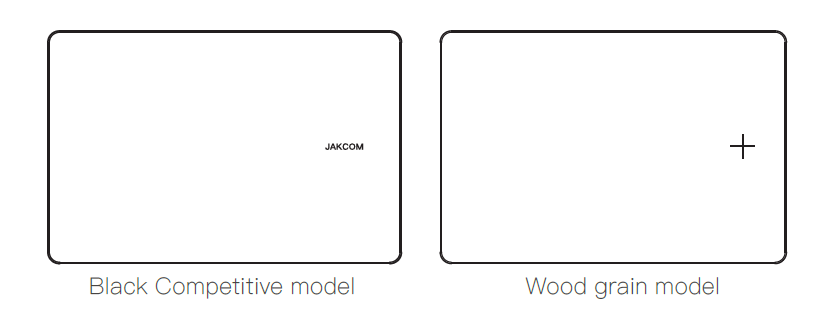

Black Competitive model

Wood grain model



Description of operation:

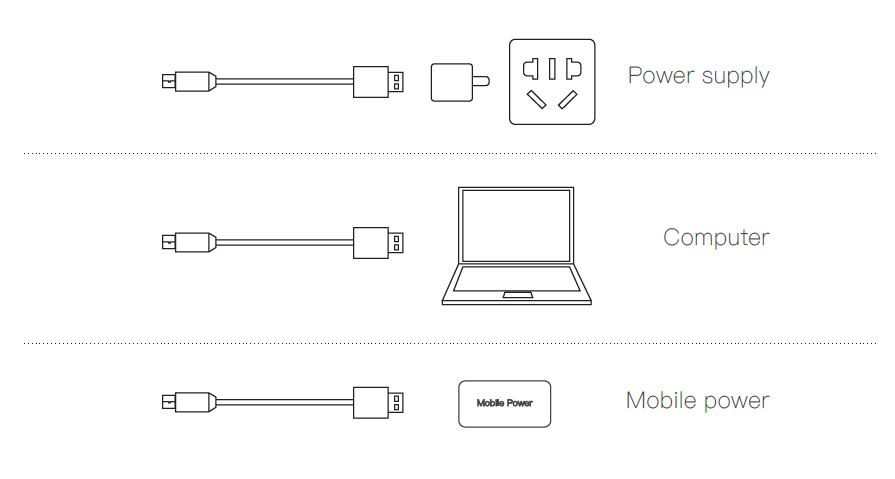

1.   Connect JAKCOM MC2 with USB power by USB cable; (as shown below)

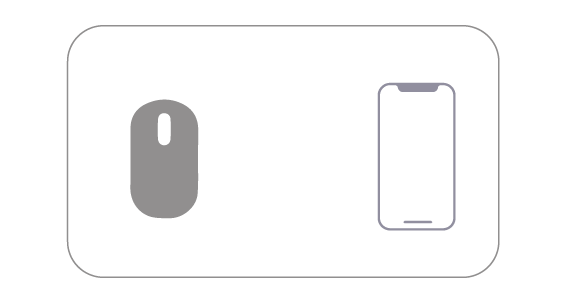

2.   Simply place phone on the center of charging induction area; (as shown below)

Parameters

Brand: JAKCOM

Model: MC2

Product: Wireless Mouse Pad Charger

Input: DC5V 2000mA

Output DC5V 1000mA

Power: ≤10W

Conversion: ≥73%

Execution standard: Qi v1.1

Transmission distance: ≤8mm

Compatible: Suitable for all mobile phones that support QI wireless charging standard



Attentions:

The wireless charging function could not be used if metal case or metal decoration is installed on the back of the mobile phone,

Overload power supply is prohibited for this product in case of abnormal temperature increase or fire;

Don’t use wet hands to plug or unplug power supply in case of electric shock;

If this product inside is sprayed with water or damp, please keep it in ventilated places until it is fully dried, then reboot for usage.



Service:

Any non-human failure in normal usage is included in the free one-year warranty for main product;

This user manual is printed in batch and can’t be real-time updated. If above content can’t help your usage, please use the link http://ins.JAKCOM.com to look up the latest usage instructions, common questions and answers or contact our customer service staff, we will respond to you as soon as possible.

Website: Http://www.JAKCOM.com

Email: service@JAKCOM.com

Cellphone: +86 400 806 7311

Service hours: 9 am – 9 pm GMT+8

Address: Unit 1 No.26 Shuangta Street Taiyuan City China
