JAKCOM OS2 Outdoor Bluetooth Speaker



Operation Instruction



Product Introduction:

JAKCOM OS2 is an Outdoor Bluetooth Speaker, which integrates Bluetooth speaker box, LED strong light flashlight, mobile power bank and FM radio. It can connect and play music inside the smart devices or memory card through Bluetooth, TF card, USB disk and AUX, can automatically search and play FM radio station, includes characteristic functions such as multi-mode LED light source flashlight, high-capacity mobile power bank, mobile wireless hands-free call, inbound call number voice and IP56 waterproof and dustproof level and supports the holder or tripod with British 1/4-20 screw thread interface. The product package includes complimentary special bike holder.



Packing list:

Mainframe x 1

MicroUSB charging line x 1

Special bike holder x 1

Instruction x 1

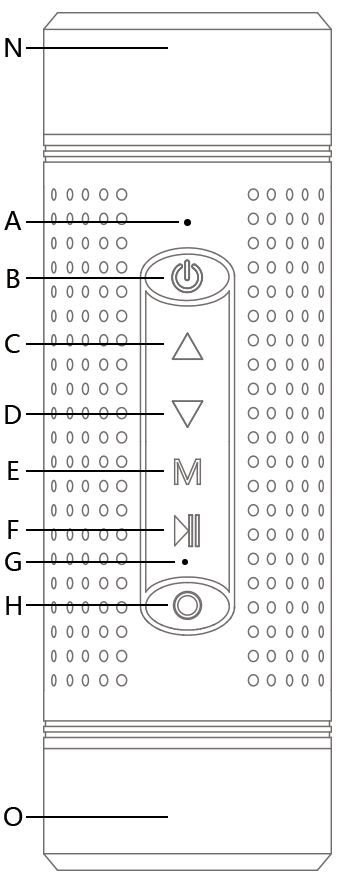

Main structure:

Call microphone



Press down: Turn on speaker box

Press up: Turn off speaker box



Click: Previous music¡¢Previous radio station

Long press:  Reduce volume



Click: Next music¡¢Next radio station

Long Press: Increase volume



Click: Switch speaker box¡¯s sound source



Long Press: Rematch the Bluetooth,¡¢Hang up unanswered call¡¢Automatically search the FM radio station

Click once: Play music¡¢Pause music¡¢Answer call¡¢Hang up call

Click twice: Dial the latest number again



G

Indicator



Long press: Turn on/off flashlight

Click: Switch flashlight mode

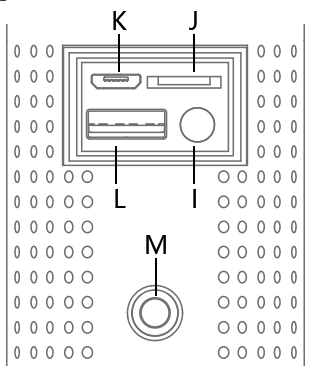

I

3.5mm AUX audio input interface



TF memory card socket



MicroUSB charging socket



U disk socket and Mobile power charging output socket



M

Universal bracket interface



Loudspeaker of speaker box



O

Flashlight lamp cap



Function description of speaker box:

Turn on:

Pressing B key hard, the key will sink and the blue indicator at G position will turn on.



Power off:

Pressing B key hard, the key will bounce back and the blue indicator at G position will turn off.



Charge:

Insert the MicroUSB plug of the charging line inside the package into the charging plug at K position, and insert the standard USB plug at the other end of the charging line into any USB interface charger with over 5V1A current, then start to charge.

When the indicator at G position flickers red, it indicates charging state. If the indicator changes into red and maintains this status, it indicates charging has been completed.



Switch of sound source mode:

After being turned on, the speaker box enters the default Bluetooth mode.

Click E key and switch the sound source of the speaker box into FM radio mode.

TF memory card mode, U disk mode and AUX audio mode can be switched and selected after corresponding media medium is inserted.



Connect Bluetooth and play:

The system will automatically wait for pairing and connection in Bluetooth mode. At this time, select ¡°OS2¡± from the list of waiting for Bluetooth pairing on the mobile phone or other smart devices in order to pair and connect it.

If a pairing password is required in connection, please input ¡°0000¡±. After successful connection, the blue indicator at G position will keep on and the music or sound in the connection device can be played.

If some successfully connected devices are available nearby, after this speaker box is turned on, it will automatically connect such devices.

To replace the connection device or pair the connection again, you can hold the F key then the speaker box will enter the state of waiting for pairing and connection again. At this time, the blue indicator at G position will flicker.



Connect TF card and play:

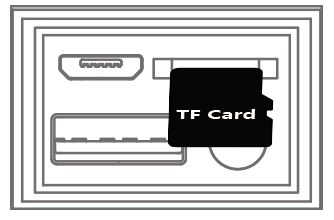

Insert card: Insert the TF card into the socket of the TF memory card at J position according to the card direction showed in the following diagram and fully push it into the plug.

Plug off card: Press the top of the card and release it, the card will pop out automatically.

Play: After the speaker box has been turned on and the TF card has been inserted, the speaker box will automatically enter the play mode of the TF card and automatically search music inside the card. If the sound source mode of other speaker box has been connected, you can click E key and switch the sound source to the TF memory card mode.

Connect U disk and play:

Insert card: Insert U disk into the standard USB socket at L position and fully push it into the plug.

Plug off card: plug out the U disk.

Play: After the speaker box has been turned on and the U disk has been inserted, the speaker box will automatically enter the play mode of the U disk and automatically search and play music inside the card. If the sound source mode of other speaker box is connected, you can click E key and switch the sound source to the U disk mode.



Play FM radio:

After the speaker box is turned on, click the E key and switch the sound source of the speaker box to FM radio mode;

Long press F key and automatically search the local radio station. The blue indicator at G position will quickly flicker;

After search, the indicator will slowly flicker. At this time, press the C key or D key and switch the radio station for receiving.



Play AUX audio:

After the speaker has been turned on and insert the 3.5mm audio line plug has been inserted into the AUX socket at I position, the device will automatically enter AUX mode and play the music from the audio line.

If the sound source mode of other speakers has been connected, click the E key and switch the sound source to AUX audio mode.



Play control:

Click C key and switch to previous music, or click D key to switch to next music in music playing;

Click C key and switch to previous radio station, or click D key and switch to next radio station in FM radio playing.

Long press C key to reduce the playing volume of the loudspeaker, or hold the D key to increase playing volume of the loudspeaker.

Click F key to pause playing music, or click F key again to continue playing music.



Call control:

Connect the mobile phone with the speaker via the Bluetooth in Bluetooth mode for hands-free call and dialing control of the mobile phone.

The speaker box will automatically give the inbound number via the voice in case of a new inbound call;

Click F key and connect the inbound call. After speaking, click F key and hang up the call;

If you do not want to answer the non-connected new inbound call, you can hang up non-connected new inbound call by long pressing F key.

Click F key twice, you can automatically dial the last phone number in the call records.



Flashlight control:

Long pressing H key, you can turn on/off the flashlight.

Clicking H key, you can switch the light mode of the flashlight to ¡°Bright light¡±, ¡°Low light¡±, ¡°SOS¡±, ¡°Breathing light¡±, ¡°Strobe¡±



Mobile power mode:

Insert the USB interface of the charging line of the mobile phone or mobile equipment into the USB socket of this speaker box at L position, the speaker box will automatically enable the mobile power mode and charge the mobile phone or mobile device and the red indicator at G position will flicker;

When the indicator at G position stops flickers, changes to red, and maintains red, it indicates that the mobile phone or mobile device is charged fully.



Specifications and parameters:

Maximum power: 5 W

Loudspeaker impedance: 4¦¸

Frequency range: 100Hz ¨C 18000Hz

SNR: More than 85dB

Music format of memory card: mainstream music formats such as MP3 and WMA

Operating temperature: -18 ¨C 80¡æ

Dimension: 156 x 52 x 52 mm

Net product weight: 230g

Charging input standard of speaker box: no less than 5V 1A

Output voltage of mobile power mode: 5V (¡À0.2V)

Output current of mobile power mode: 1A (¡À0.2A)

Range of Bluetooth pairing distance: 30cm

Range of Bluetooth connection and transmission: 10m

Waterproof and dustproof level: IP56

Screw thread standard of holder interface: British 1/4-20



Explanation of frequent questions:

Question: Fail to be turned on

Answer: Please check if the speaker¡¯s battery has power, charge it, and try to turn it on again.



Question: Fail to play music in TF card or U disk

Answer: First check if the insertion direction in the memory card is correct, then check whether the memory card can be opened on the PC, and confirm whether the music file in the memory card can be played and whether the music formats belong to mainstream formats such as MP3 and WMA.



Question: Fail to search FM radio station

Answer: Please check if the FM radio signals are covered around your environment, move the speaker box to outdoor or close to the outdoor position, and try it again.

If the signals are weak and the sound quality is bad, apart from adjusting the position of the speaker box, you can insert the AUX audio line as the external antenna of the FM radio to enhance receiving capability of FM radio signals.



Question: Fail to connect Bluetooth

Answer: If connect failed, please try to power off this speaker, and then power on it again, after that hold the F key then the speaker box will enter the state of waiting for pairing and try to connect another phone¡¯s Bluetooth, if connect successful, you can try this method to reconnect your phone again.

If you have to enter password for Bluetooth pairing, you can enter the default password ¡°0000¡±.



Question: Bluetooth is already connected, but the sound still comes from cellphone or computer¡¯s own speaker.

Answer: Check whether the audio output mode of cellphone/computer is Bluetooth or not. Sometimes, although Bluetooth is connected, the default audio output mode of some cellphones/computers is local, manual selection is needed.

If you have multiple cellphones or this JAKCOM OS2 in your home, please confirm whether the Bluetooth is connected which device your want to connect.



Question: Intermittent playing sound

Answer: Please check the audio files played and try other ones for testing.

Pay attention to avoid unduly long Bluetooth connection distance, or avoid other wireless device with 2.4GHz nearby, or try to move ambient metal objects. All these factors may interfere Bluetooth transmission. When the signal is not good enough, the phenomenon of intermittent sound happens.



Safety warning:

1. Overload power supply is prohibited for this product in case of abnormal temperature increase or fire;

2. Don¡¯t use wet hands to plug or unplug power supply in case of electric shock;

3. If this product inside is sprayed with water or damp, please keep it in ventilated places until it is fully dried, then reboot for usage.



Service:

1. Any non-human failure in normal usage is included in the free one-year warranty for main product;

2. The quality problems don't include subjective objections, such as, personal dissent about sound quality, tone and so on;

a) Website : Http://www.JAKCOM.com

b) Email : service@JAKCOM.com

c) Cellphone£º+86 400 806 7311

d) Service hours : 9 am ¨C 9 pm GMT+8

e) Address : Unit 1 No.26 Shuangta Street Taiyuan City China
